05 / 2025 / 3D PRINTING · LATCHES

CUSTOM
HEADPHONE +
MOUSE CASES

Two compact 3D printed travel cases built around the exact geometry of the devices they protect, with storage for accessories and custom closure mechanisms.

TYPE Personal Project
PROCESS CAD → 3D Printing → Assembly
FOCUS Protective Packaging,
Custom Fit, Latches,
Small Mechanisms
OPEN / CLOSED VIEW

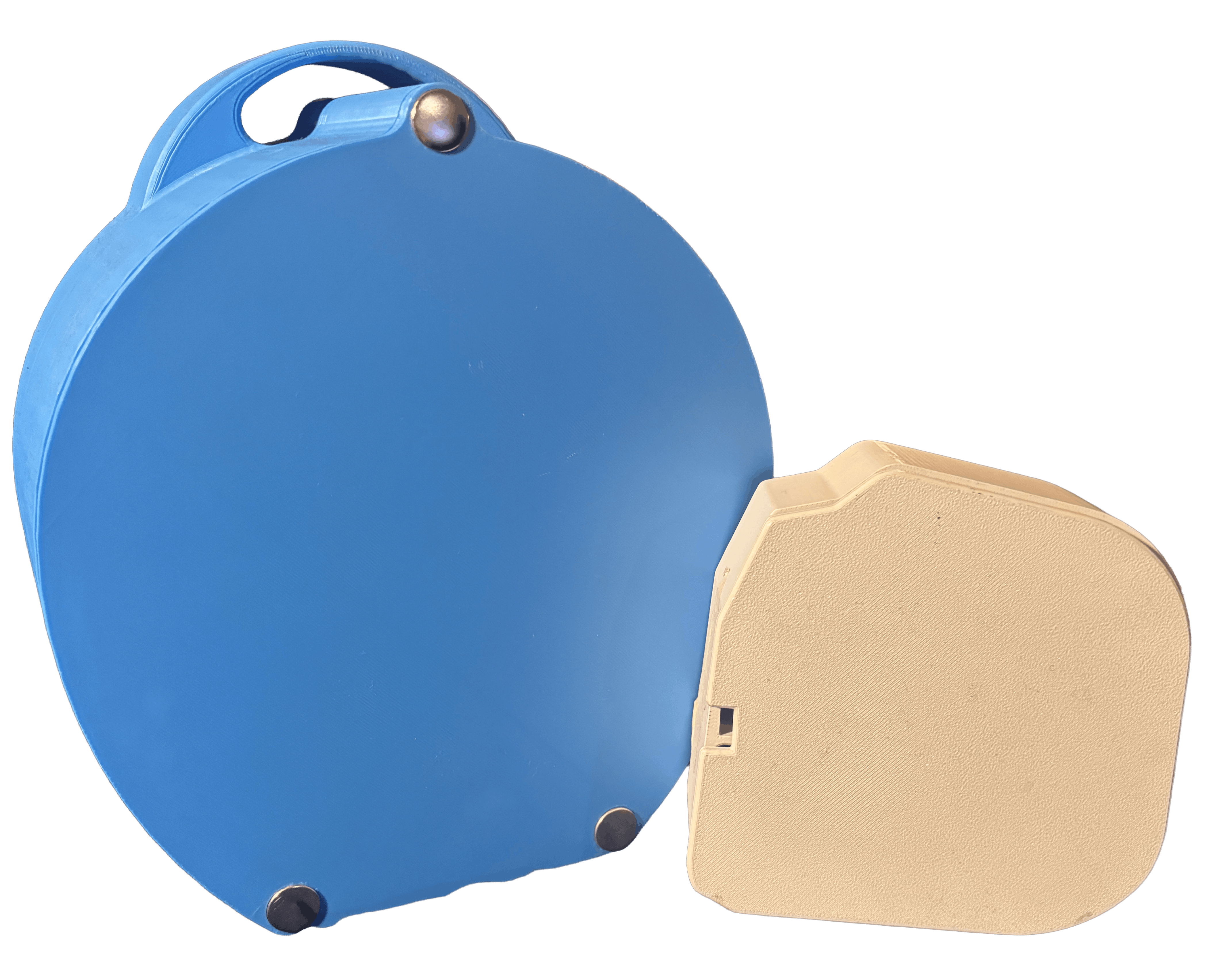

Headphone and mouse cases shown open Headphone and mouse cases shown closed
05 / CUSTOM-FIT PROTECTION HEADPHONE + MOUSE CASES
↗
01

WHY I MADE THEM

My previous headset and mouse both broke after being thrown loose into a backpack for travel. When I replaced them with nicer hardware, I decided the new versions needed proper cases.

02

HEADPHONE CASE

The Arctis Nova case includes a felt-lined cavity, a dedicated slot for the wireless dongle, a separate compartment for the charging cable, three snap closures, foam feet, and a small top handle for carrying or hanging.

03

MOUSE CASE

The Razer Naga Pro case had to fit the mouse's unusual shape while also storing its interchangeable side-button panels. Magnets hold the panels in place, while a 3D printed bending latch closes the lid with a satisfying snap.

04 / DESIGN DETAILS FUNCTION BUILT INTO THE CASES

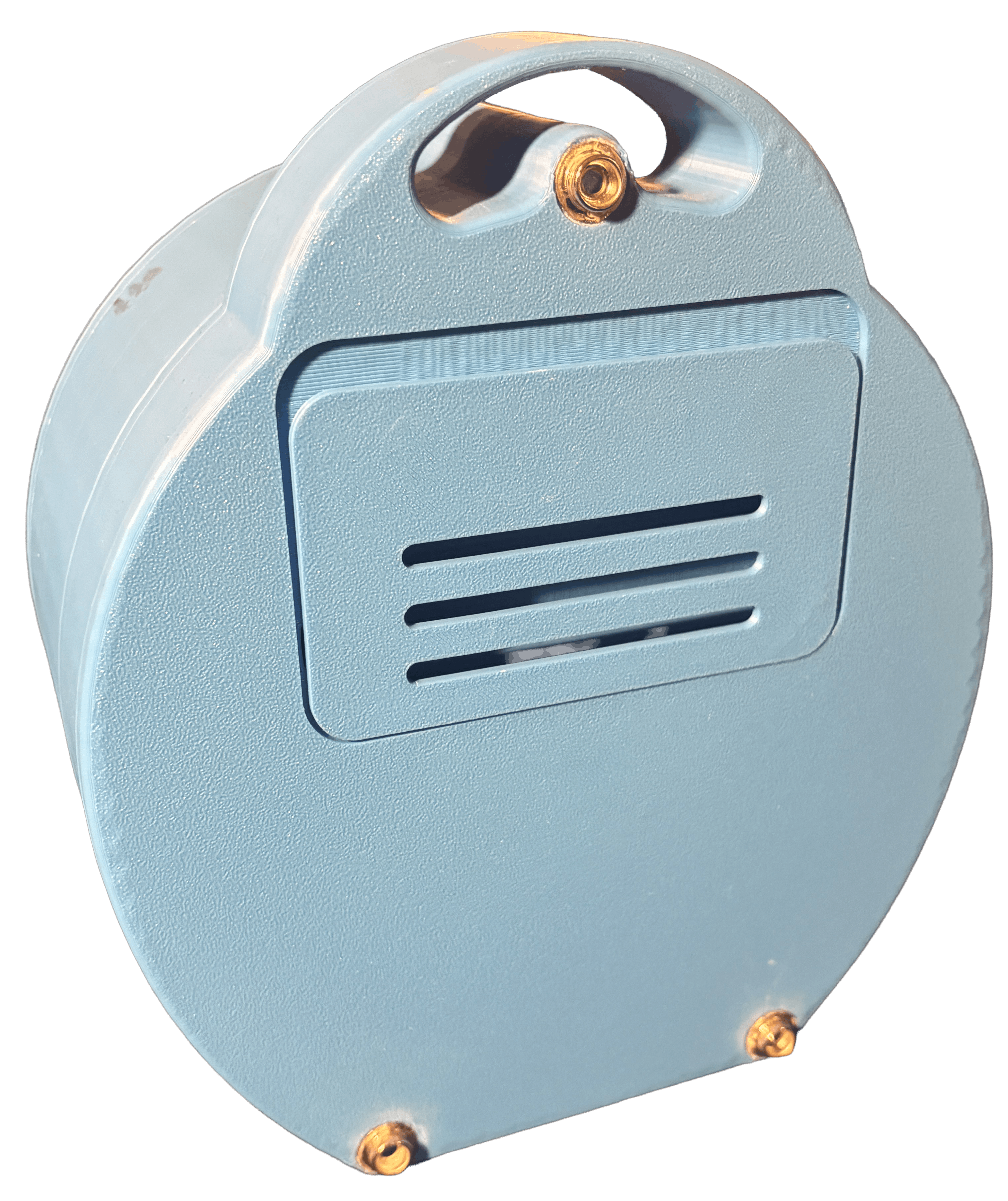

Back side of headphone case showing sliding charging cable compartment
HEADPHONE CASE / CHARGING CABLE COMPARTMENT

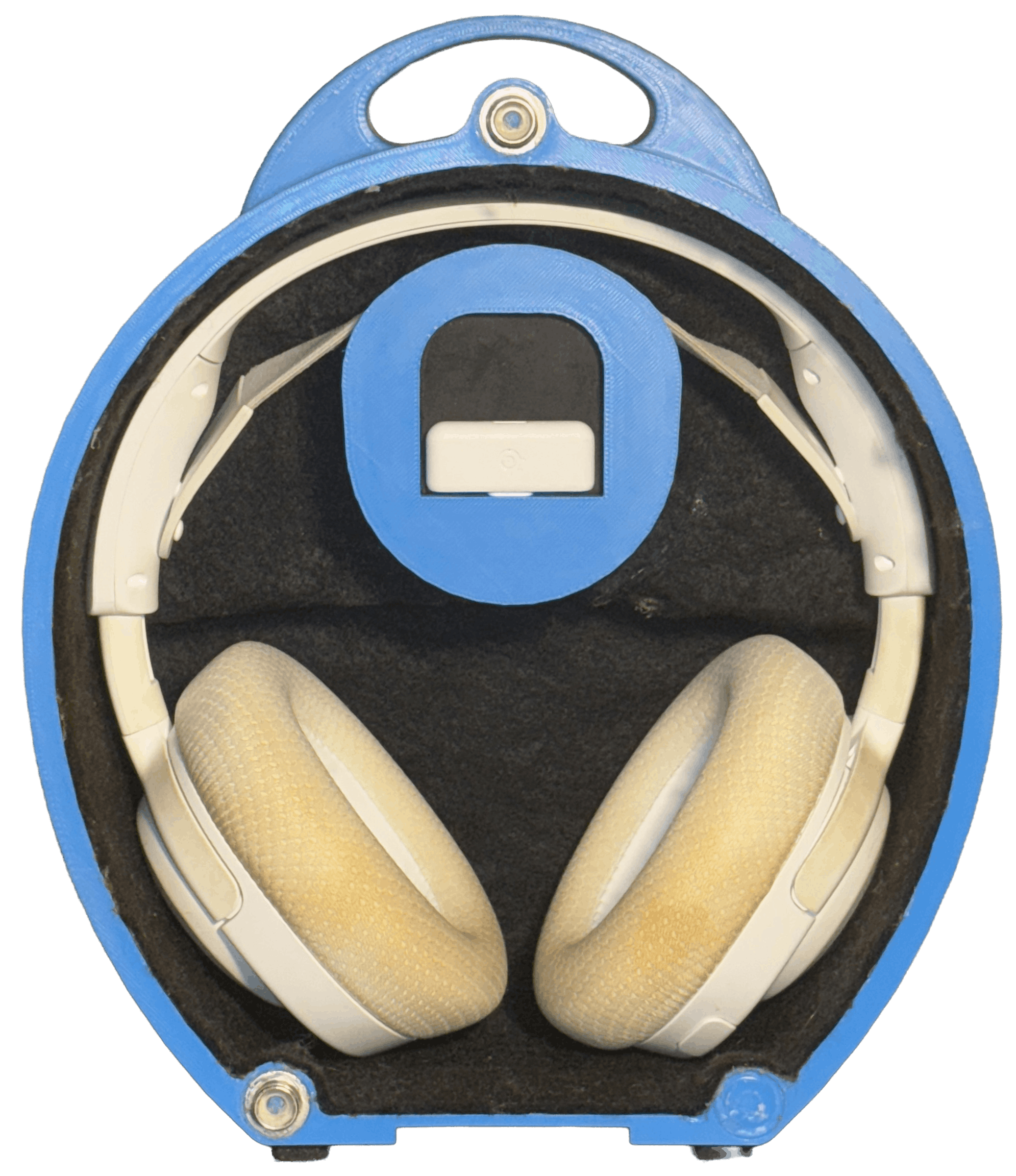

Front view of custom headphone case
HEADPHONE CASE / FRONT VIEW

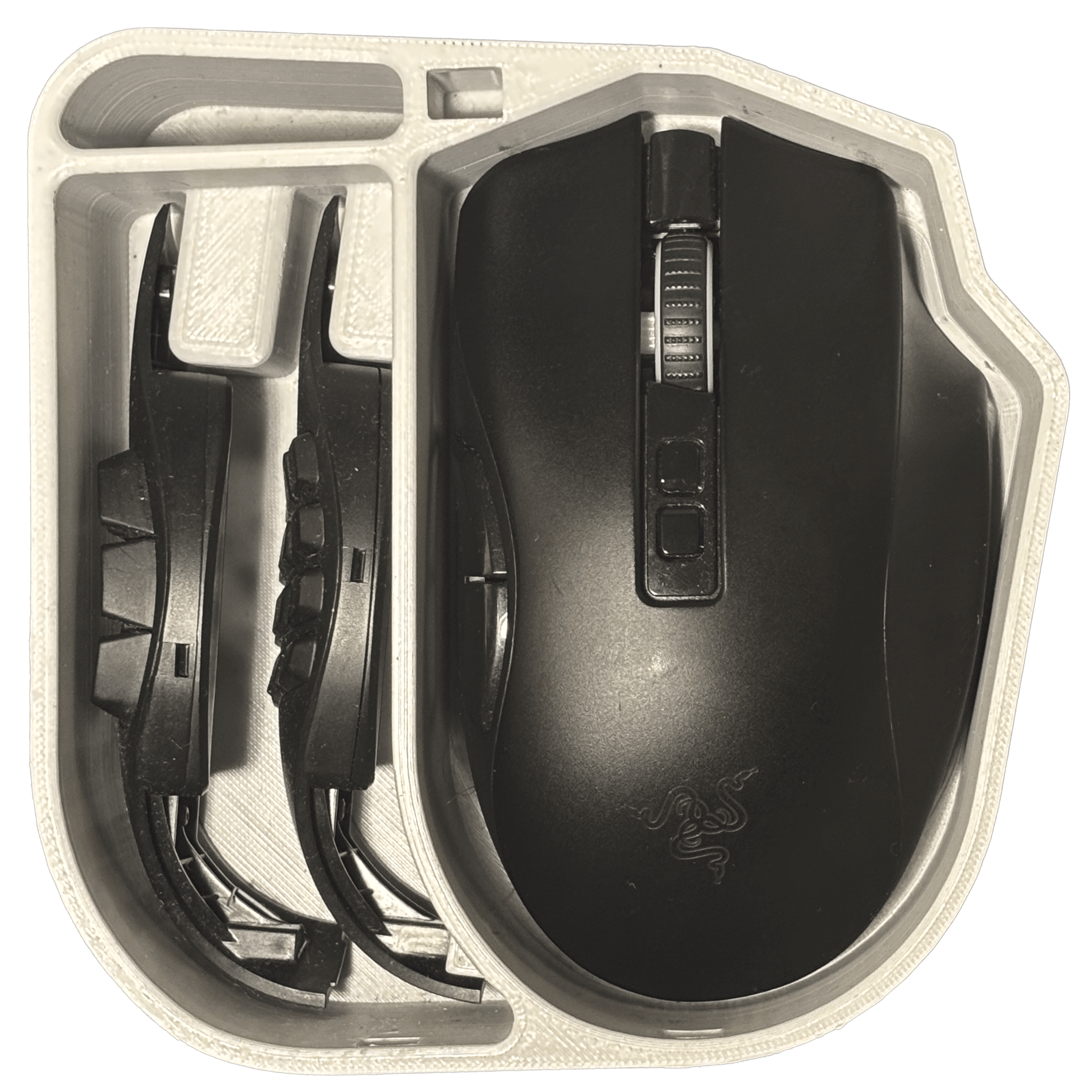

Front view of custom mouse case
MOUSE CASE / MAGNETIC SIDE-PANEL STORAGE
05 / CAD DESIGNED AROUND THE HARDWARE

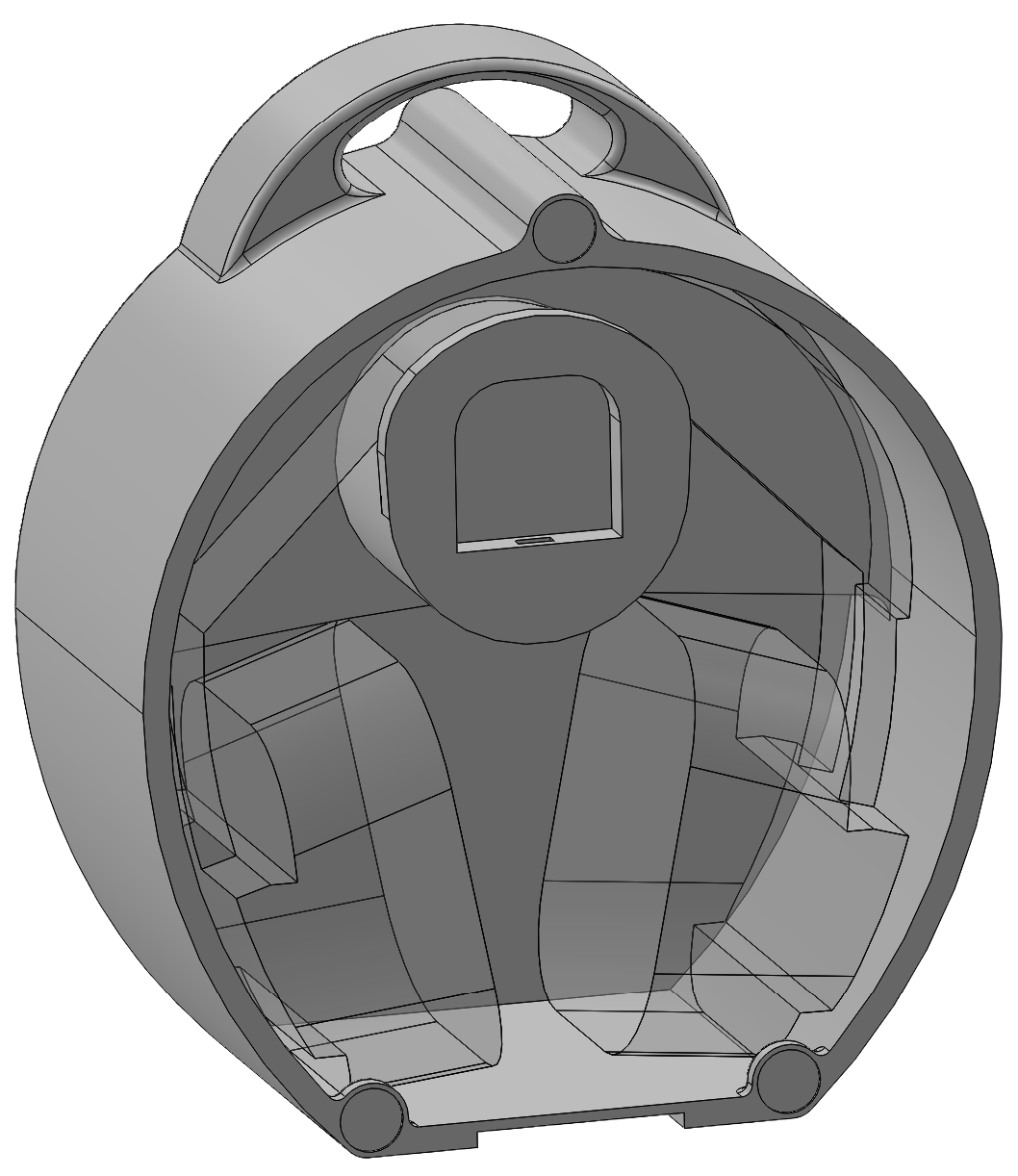

CAD view of the custom headphone case
HEADPHONE CASE / CAD

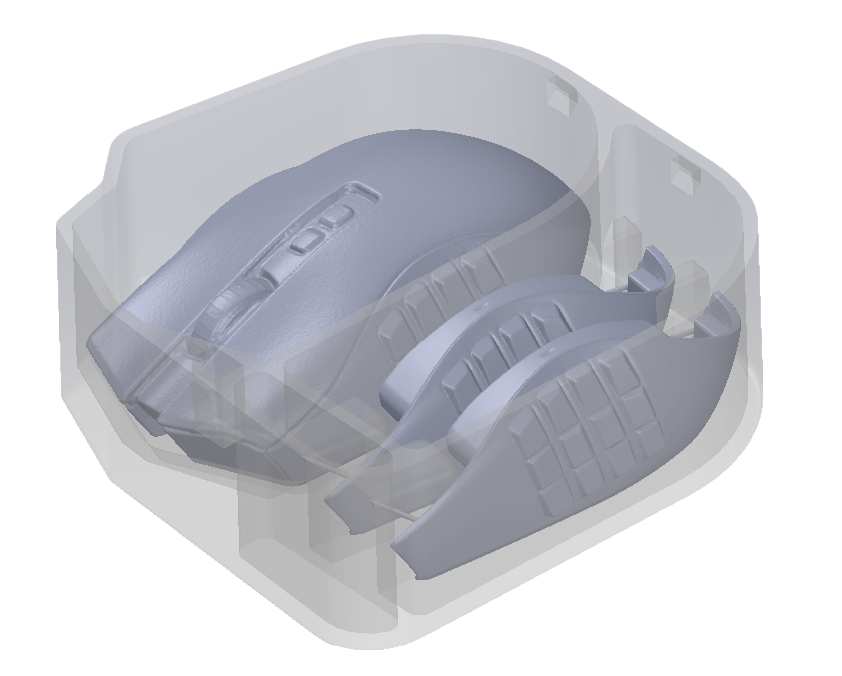

CAD view of mouse case showing mouse and interchangeable side panels
MOUSE CASE / MODELED AROUND DEVICE + SIDE PANELS
